Production Equipment

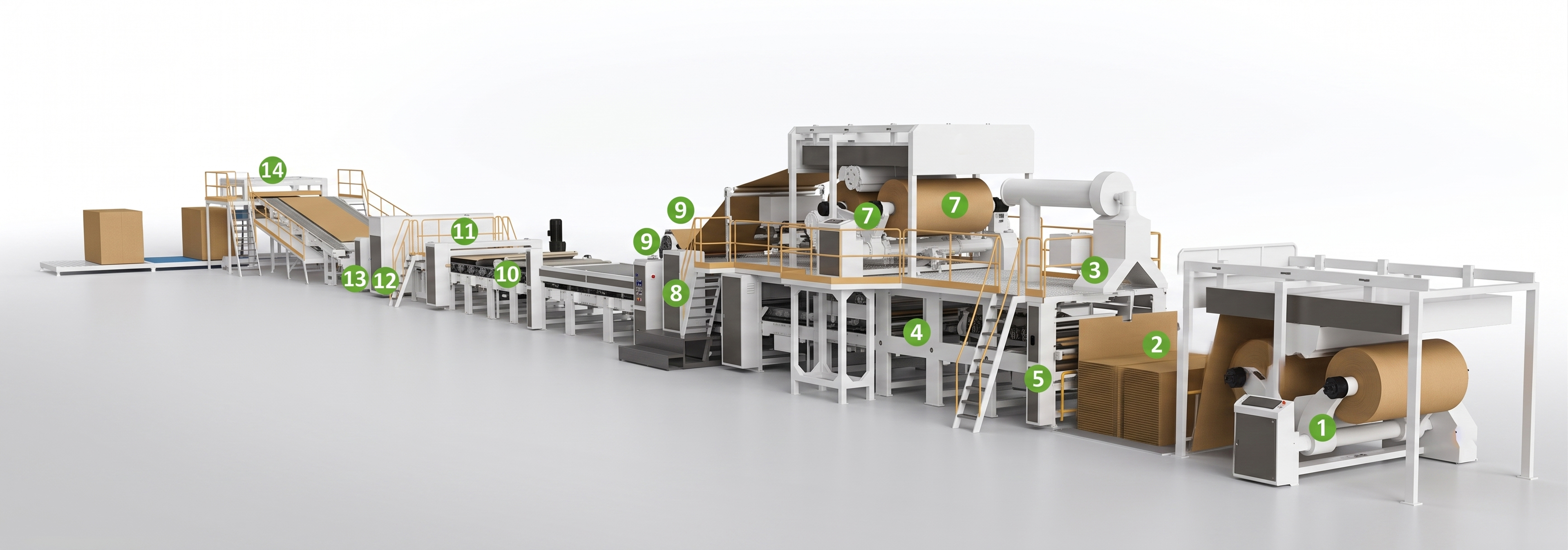

HF2400-100G Automatic High-speed Honeycomb Paperboard Composite Production Line
1 Bottom face paper unwinding
2 Paper core expanding
3 Paper core drying
4 Bottom core paper gluing
5 Bottom face paper preheating
6 Bottom heating board pressing
7 Top face paper unwinding
8 Top core paper gluing
9 Top face paper preheating
10 Top heating board pressing
11 Paperboard cooling
12 Paperboard slitting (creasing)
13 Paperboard cross-cutting
14 Paperboard stacking
Main Technical Parameters
| Machine Model | HF 2400-100G |
|---|---|
| Core Paper Effective Width | 1500mm-2400mm |
| Thickness of end product | 5-15mm |
| Length of end product | 800mm-3500mm |
| Production speed | 100m/min |
| Heating method | Steam heating |
| Equipment power | Approx. 230KW |
| Overall dimensions | 86500mm(L) x 6500mm(W) x 5100mm(H) |
| Equipment weight | Approx. 187T |
Production Equipment

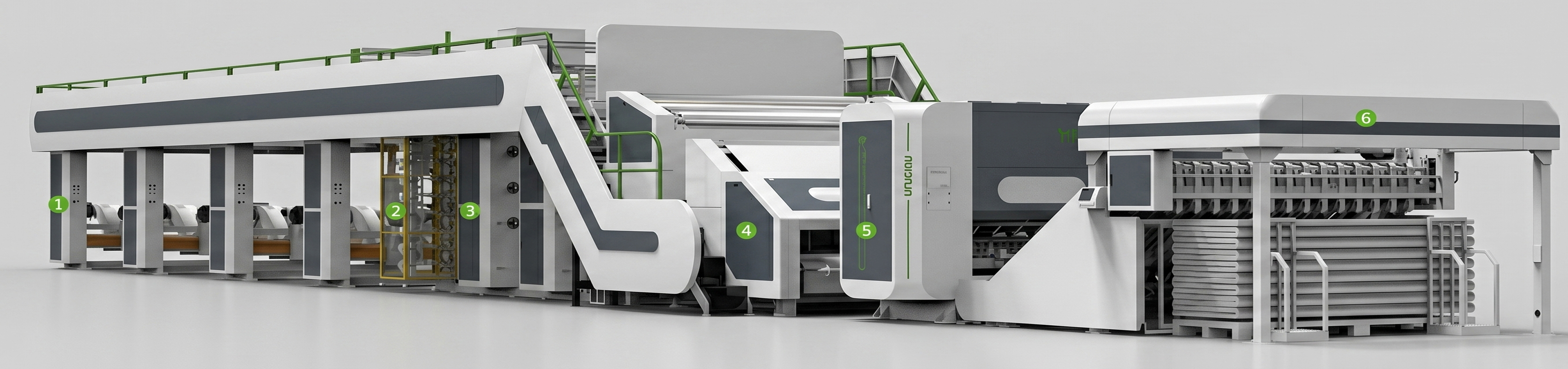

HX3000-1100G Fully Automatic High-speed Honeycomb Paper Core Production Line
1 8 rolls of paper feeding simultaneously
2 Core paper preheating
3 Core paper gluing line
4 Core paper compounding and drying
5 Transverse cutting machine
6 Automatic paper core collection
Main Technical Parameters
| Machine Model | HX 3000-1100G |
|---|---|
| Core Paper Effective Width | 1700mm - 3000mm |
| Side Length Of Honeycomb | Customizable according to customer needs |
| Transverse Cutting Speed | 1100 cuts/min |
| Core Paper Thickness | 5 - 60mm |
| Heating Method | Steam heating |
| Equipment Power | Approx. 50KW |
| Overall Dimensions | 35300mm(L) x 6000mm(W) x 3800mm(H) |
| Equipment Weight | Approx. 90T |
